Merancang Rangkaian Sensor Garis



Sensor garis sering digunakan pada robot line follower (robot pengikut garis), digunakan juga sebagai pendeteksi objek dengan permukaan bidang pantul yang kontras.



Nah, pada blog ini dijelaskan bagaimana cara mendesain sensor garis tersebut menggunakan sensor

photodiode.



Selain menggunakan photodiode dapat juga dirancang dengan menggunakan phototranssistor, infra red, dan masih banyak laennya.



Sensor photodiode adalah salah satu jenis sensor peka cahaya (photodetector). Photodiode akan mengalirkan arus yang membentuk fungsi linear terhadap intensitas cahaya yang diterima. Arus ini umumnya teratur terhadap power density (Dp).



Perbandingan antara arus keluaran dengan power density disebut sebagai current responsitivity. Arus yang dimaksud adalah arus bocor ketika photodiode tersebut disinari dan dalam keadaan dipanjar mundur.



Hubungan antara keluaran sensor photodiode dengan intensitas cahaya yang diterimanya ketika dipanjar mundur adalah membentuk suatu fungsi yang linier. Hubungan antara keluaran sensor photodiode dengan intensitas cahaya ditunjukkan pada Gambar berikut.





Gambar Hubungan keluaran photodiode dengan intensitas cahaya



Mekanisme Perancangan Sensor Garis



LED superbright berfungsi sebagai pengirim cahaya ke garis untuk dipantulkan lalu dibaca oleh sensor photodiode. Sifat dari warna putih (permukaan terang) yang memantulkan cahaya dan warna hitam (permukaan gelap) yang tidak memantulkan cahaya digunakan dalam aplikasi ini. Gambar dibawah ini adalah ilustrasi mekanisme sensor garis.





Gambar Ilustrasi mekanisme sensor garis



Prinsip Kerja Sensor



Pada rancangan sensor photodiode dibawah ini, nilai resistansinya akan berkurang bila terkena cahaya dan bekerja pada kondisi riverse bias.



Untuk pemberi pantulan cahayanya digunakan LED superbright, komponen ini mempunyai cahaya yang sangat terang, sehingga cukup untuk mensuplai pantulan cahaya ke photodiode. Berikut ini prinsip dan gambaran kerja dari sensor photodiode.





Gambar Sensor photodiode tidak terkena cahaya



Saat photodiode tidak terkena cahaya, maka nilai resistansinya akan besar atau dapat diasumsikan tak hingga. Sehingga tidak ada arus bocor yang mengalir menuju komparator.



Gambar Sensor photodiode terkena cahaya



Saat photodiode terkena cahaya, maka photodiode akan bersifat sebagai sumber tegangan dan nilai resistansinya akan menjadi kecil, sehingga akan ada arus bocor yang mengalir ke komparator.







---

This email is free from viruses and malware because avast! Antivirus protection is active.

Praktikum 2
digitalRead () dan Komunikasi Serial



Pada praktikum kali ini, kita akan mencoba penggunaan button sebagai input ke arduino, dan membaca hasilnya pada komputer kita. Untuk membuat sebuah robot diperlukan pemahaman tentang sensor. Pada dasarnya sensor ini bekerja layaknya sebuah button, saat satu kondisi tertentu mengalirkan arus listrik dan dilain waktu tidak atau mengalirkan arus listrik dengan proporsi tertentu. Nah, itulah yang nantinya diterima oleh Arduino. Dari hasil bacaan sensor tersebut barulah kita membuat program/sketch aksi apa yang harus dilakukan oleh Arduino terhadap bacaan sensor. Untuk praktikum kali ini kita menggunakan button sebagai sensor kita.



Komponen yang Dibutuhkan

Arduino Uno 1x

Protoboard 1x

Pushbutton 1x

Resistor 10kOhm 1x

Kabel Jumper 3x

Langkah-Langkah Praktikumnya..

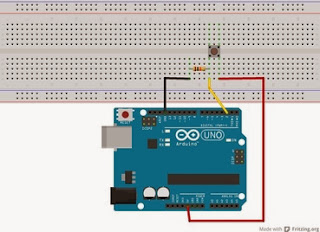

klik gambar untuk memperbesar

Susun dan rangkai komponen-komponen praktikum seperti gambar di atas.

1. Hubungkan Kaki 1 Push Button dengan pin 5v Arduino menggunakan kabel jumper (gunakan warna merah)

2. Hubungkan Kaki 2 Push Button dengan salah satu kaki Resistor 10KOhm dan pin digital 2 Arduino. Untuk ke pin 2 arduino gunakan kabel jumper (gunakan warna kuning)

3. Hubungkan kaki Resistor yang belum terhubung ke pin Gnd arduino menggunakan kabel jumper (gunakan warna hitam)

4. Pasang dan hubungkan kabel USB ke arduino kemudian sambungkan dengan port USB komputer

5. Bukalah IDE Arduino pada komputer kemudian ketikkan Program/Sketch berikut





Buka Jendela IDE arduino kemudian ketikkan sketch di samping.

int pushButton = 2; void setup()  {   Serial.begin(9600);   pinMode(pushButton, INPUT); } void loop()  {  int kondisiButton = digitalRead(pushButton);   Serial.println( kondisiButton);   delay(1); }

6. Compile sketch tersebut menggunakan tombol "verify" atau pilih File >  pada IDE Arduino jika tidak ada error, Upload ke Board Arduino menggunakan tombol "Upload".

7. Buka jendela komunikasi serial pada IDE arduino caranya, pilih Tools > Serial Monitor.

Jika tidak ada kesalahan, maka hasil dari input yang mana dalam praktikum ini yaitu Pushbutton akan terbaca di jendela komunikasi serial pada IDE arduino. Cobalah menekan Pushbutton dan amati hasilnya pada jendela komunikasi serial tersebut.



Diskusi dan Pembahasan Sketchnya..

Baiklah, sekarang kita akan membahas tentang sketch yang telah kita ketikkan. Perhatikan kembali sketch berikut:



Lanjut Membaca..



---

This email is free from viruses and malware because avast! Antivirus protection is active.

Belajar Membuat Robot

DASAR INPUT & OUTPUT DIGITAL

PRAKTIKUM 3

TUJUAN PRAKTIKUM

Praktikan mampu memahami beberapa contoh project sederhana dari praktikum-praktikum sebelumnya.

Praktikan dapat memahami penggunaan dari sytax: for(;;), array[] = {,,,}

HARDWARE

(1xArduino, 1xProtoboard, 6xLED5mm, 7xkabel jumper, 6xResistor330Ω atau 1kΩ)

LANGKAH PRAKTIKUM

Baca Selengkapnya di BBROBOT INDONESIA

---

This email is free from viruses and malware because avast! Antivirus protection is active.

belajar Arduino tutorial untuk pemula.
